How Kubernetes Services Work
A Kubernetes service is a logical collection of pods in a Kubernetes cluster. We can define a K8s service as an abstract way to load balance across the pods and expose an application deployed on a set of Pods. Moreover, using the inbuilt service mechanism in Kubernetes eliminates the need for implementing a separate service discovery mechanism.
In this article, we will discuss the structure of a Kubernetes service and how to utilize it.
(This article is part of our Kubernetes Guide. Use the right-hand menu to navigate.)
A Kubernetes service can be used to easily expose an application deployed on a set of pods using a single endpoint. A service is both a REST object and an abstraction that defines:
Pods in a Kubernetes deployment are regularly created and destroyed, causing their IP addresses to change constantly. It will create discoverability issues for the deployed, application making it difficult for the application frontend to identify which pods to connect.
This is where the strengths of Kubernetes services come into play: services keep track of the changes in IP addresses and DNS names of the pods and expose them to the end-user as a single IP or DNS.
Kubernetes services utilize selectors to target a set of pods:
Here are general attributes of a service:
Now let’s see how services work.
As mentioned above, we can define Kubernetes services with or without selectors—let’s do both!
In the following example, we have defined a simple service exposing port 80 in the service while targeting port 8080 in the Pods with the selector label "app=webserver-nginx".
apiVersion: v1
kind: Service
metadata:
name: nginx-service
spec:
selector:
app: webserver-nginx
ports:
- protocol: TCP
port: 80
targetPort: 8080
Kubernetes will automatically assign an IP address ("Cluster IP") which will then be used by service proxies to route the traffic. The controller for the selector will consistently monitor for Pods matching the defined label.
Some applications will require multiple ports to be exposed via the service. Kubernetes facilitates this using multi-port services where a user can define multiple ports in a single service object. When defining a multi-port service, the main requirement is to provide names for each port exposed so that they are unambiguous. These port names can:
In this example, we have exposed both ports 80 and 443 to target ports 8080 and 8090 to route HTTP and HTTPS traffic to underlying pods using the selector "app=webserver-nginx-multiport"
apiVersion: v1
kind: Service
metadata:
name: nginx-service
spec:
selector:
app: webserver-nginx-multiport
ports:
- name: http
protocol: TCP
port: 80
targetPort: 8080
- name: https
protocol: TCP
port: 443
targetPort: 8090
When defining a service without a selector, you need to manually map the service to the corresponding IP address and port by adding an endpoints object. The reason is that the endpoint objects are not created automatically like with a selector since Kubernetes does not know to which Pods the service should be connected.
Service:
apiVersion: v1
kind: Service
metadata:
name: nginx-service
ports:
- protocol: TCP
port: 80
targetPort: 8080
Endpoint:
apiVersion: v1
kind: Endpoints
metadata:
name: nginx-service
subsets:
- addresses:
- ip: 192.10.0.1
ports:
- port: 8080
When defining a service and the endpoint, the main consideration is that both the name of the service and the endpoint must be an exact match.
Some use cases for services without selectors include:
Now that we know the basic structure of a Kubernetes service, let’s use a practical example to better understand how to create a service. First, we’ll create a small deployment with four replicas of an apache web server.
apache-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: apache-deployment
labels:
app: webserver
spec:
replicas: 4
selector:
matchLabels:
app: webserver
template:
metadata:
labels:
app: webserver
spec:
containers:
- name: apache
image: bitnami/apache:latest
ports:
- containerPort: 80
Create the deployment.
kubectl apply -f apache-deployment.yaml
Result:
Check the status of the deployment.
kubectl get deployment apache-deployment
Result:
Now we have deployed the application to the apache server.
Next, we will create a service to access our deployed application. There are two methods to do that, either:
The expose command allows users to create the service from the command line directly.
We can use the following command to expose the "apache-deployment" with the ClusterIP service type. We will point the service to port 8080 as the "bitnami/apache" image uses port 8080 as the HTTP port.
kubectl expose deployment apache-deployment --name=apache-http-service --type=ClusterIP --port=8080 --target-port=8080
Result:
Check whether the service is created correctly.
kubectl get service apache-http-service
Result:
Now we need to forward the traffic to the service we created, and we can use the "kubectl port-forward" command for that. We will be directing traffic from host port 8090 to service port 8080.
kubectl port-forward service/apache-http-service 8090:8080
Result:
When we navigate to the "http://localhost:8090", we will be directed to an Nginx landing page like the following.
We could have also defined a service using a YAML file for the above scenario, as shown below. There we have set the selector as "app=webserver."
apiVersion: v1
kind: Service
metadata:
name: apache-http-service
spec:
selector:
app: webserver
ports:
- protocol: TCP
port: 8080
targetPort: 8080

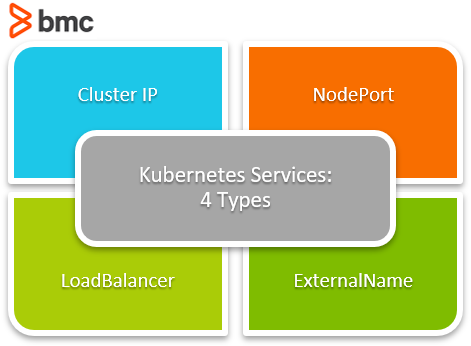

There are four types of Kubernetes services:
This is the default type that exposes the service on an internal IP of the cluster. These services are only accessible within the cluster. So, users need to implement port forwarding or a proxy to expose a ClusterIP to a wider ingress of traffic.
A NodePort service exposes the service on the IP of each node at a static port. A ClusterIP service is created automatically to route the traffic to the NordPort service. Users can communicate with the service from the outside by requesting <NodeIP>:<NodePort>
This is the preferred solution to expose the cluster to the wider internet. The LoadBalancer type of service will create a load balancer (load balancer type depends on the cloud provider) and expose the service externally.
It will also automatically create ClusterIP and NodePort services and route traffic accordingly.
This type of service maps the service to the contents of the externalName field (Ex: app.test.com). It does this by returning a value for the CNAME record.
The kube-proxy process implements a form of virtual IPs for all the service types, excluding the ExternalName type. Using proxying for services enables users to mitigate some DNS resolution issues.
For example, if a DNS record is expired, there might be instances where previous DNS lookups are still cached with the expired record, leading to resolution issues. Similarly, DNS records not getting properly propagated can also lead to resolution issues.
The following three methods can be used by the kube-proxy for routing traffic:
In this mode, kube-proxy monitors the Kubernetes master, and whenever a service or an endpoint gets created or removed, it allocates or deallocates a random port on the local node.
All the connections to this "proxy port" are proxied to the service and the necessary endpoints.
This mode also monitors the Kubernetes master for services and endpoints. However, it will also install iptable rules to capture traffic to the ClusterIp of the service and port and then redirect the traffic.
Additionally, it will install iptable rules for endpoint objects to select the backend Pod, while the default behavior is to select a random backend. (Pod)
In this mode, the kube-proxy watches the services and endpoints and then calls the Netlink interface to create appropriate ipvs (IP Virtual Server) rules. This mode will periodically sync the ipvs rules with the services and endpoint to keep everything up to date.
You can use two methods to discover a service—DNS or Environment Variable.
This is the preferred method for service discovery. Here, the DNS server is added to the Kubernetes cluster that watches the Kubernetes API and creates DNS records for each new service. When the DNS is enabled, cluster-wide all Pods will be able to perform name resolution of services.
In this method, kubelet adds environment variables to Pods for each active service. When using this method, the desired service must be created before creating the Pods which will use that service. Otherwise, the Pods would not get the necessary environment variables for the desired service.
When load-balancing and single service IP are not required, users can create a headless service by explicitly specifying "none" for the cluster IP field (.spec.clusterIP). These headless services do not have associated Cluster IPs, and no load balancing or proxying is provided for them by the platform. The Kube-proxy also ignores these services.
DNS configuration of these services depends on the selectors defined in the services.
With that, we’ve covered all the basics of Kubernetes services. We now know about services, including the different types, service discovery, and service proxy usages. Services are an integral part of Kubernetes that provide means to facilitate communication between pods, external services, and users.
